Main Component |
Tech Spec. |
|
|
Generator |
Voltage |
AC220V ± 22V |
|
Power |
5kW |
|
|
kV Range |
40～110kV |
|
|
mA Range |
20～100mA |
|
|
mAs Range |
0.2-200mAs |
|
|
Working Frequency |
≥40kHz |
|
|
Exposure time |
0.01S～4S |
|
|
X-ray tube |
Anode heat storage |
56KHU |
|
Focus |
1.8mm |
|
|
Collimator |
Inherent filtration |
1mm Al/75Kv |
|
Light source |
LED |
|
|
Touch Screen |
Dimension |
10.4inch |
|

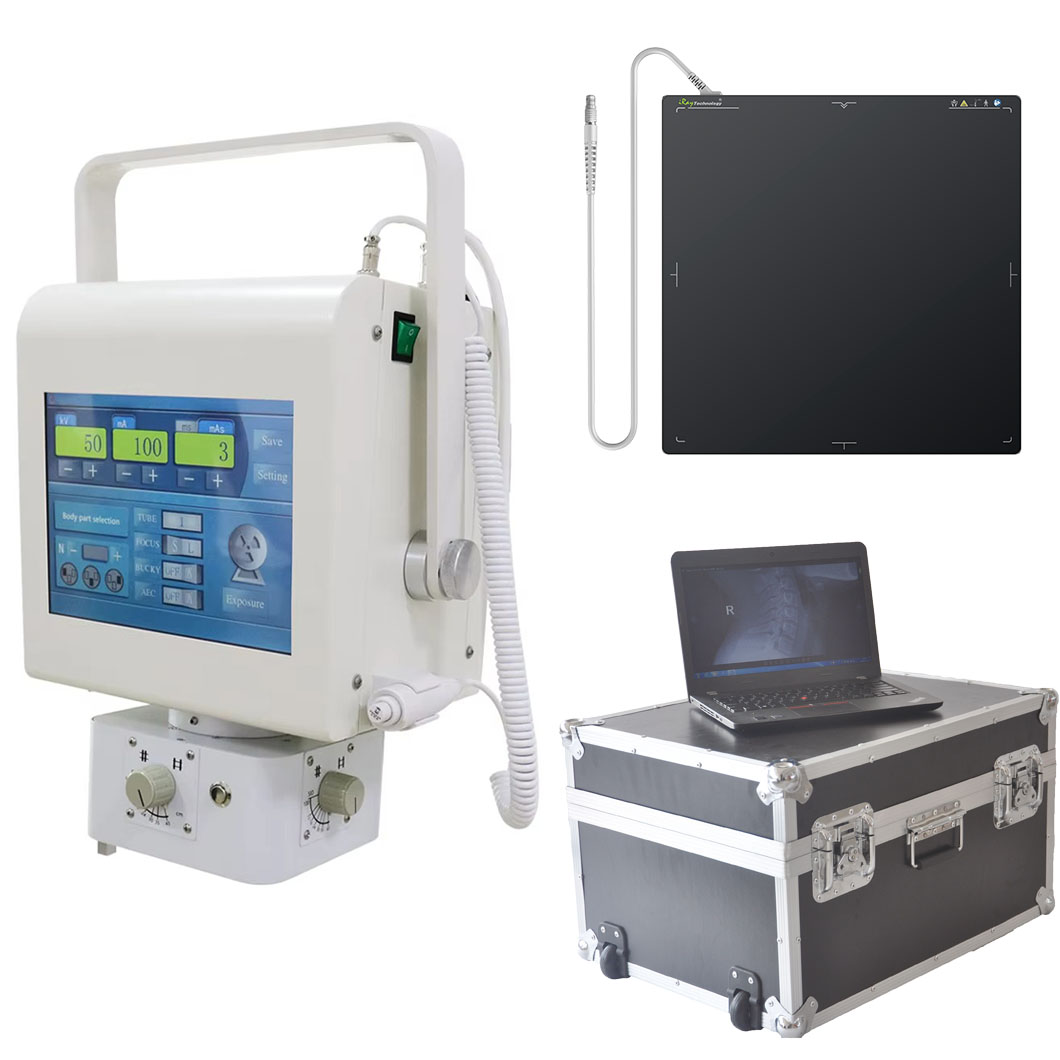

Wire Flat Panel Detector 17*17inch |
Scintillator |
CsI |
|
Pixel Pitch |
139 |
|
|
Limit resolution |
3.6 |
|
|
Pixels |
3072*3072 |
|
|
Laptop |
CPU |
Intel Core i5 |
|
Memory capacity |
4GB |
|
|
Physical Spec. |
||
|

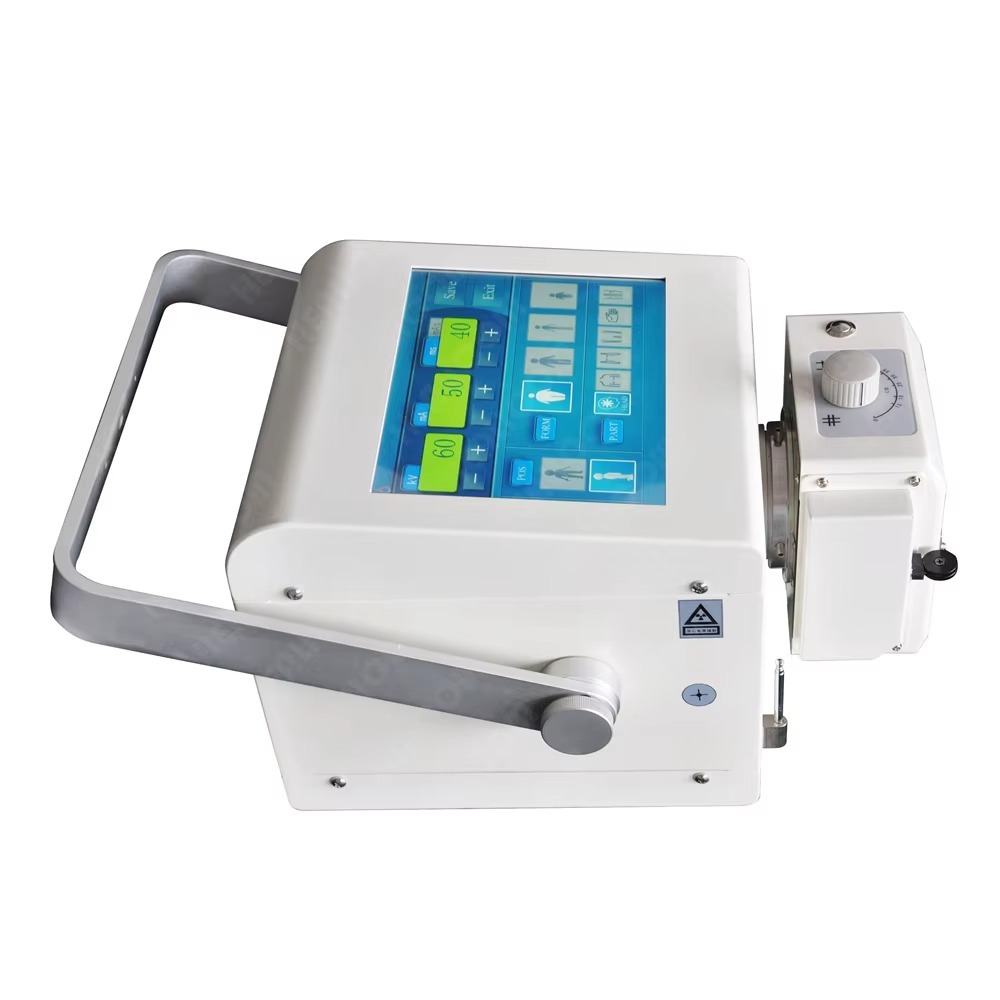

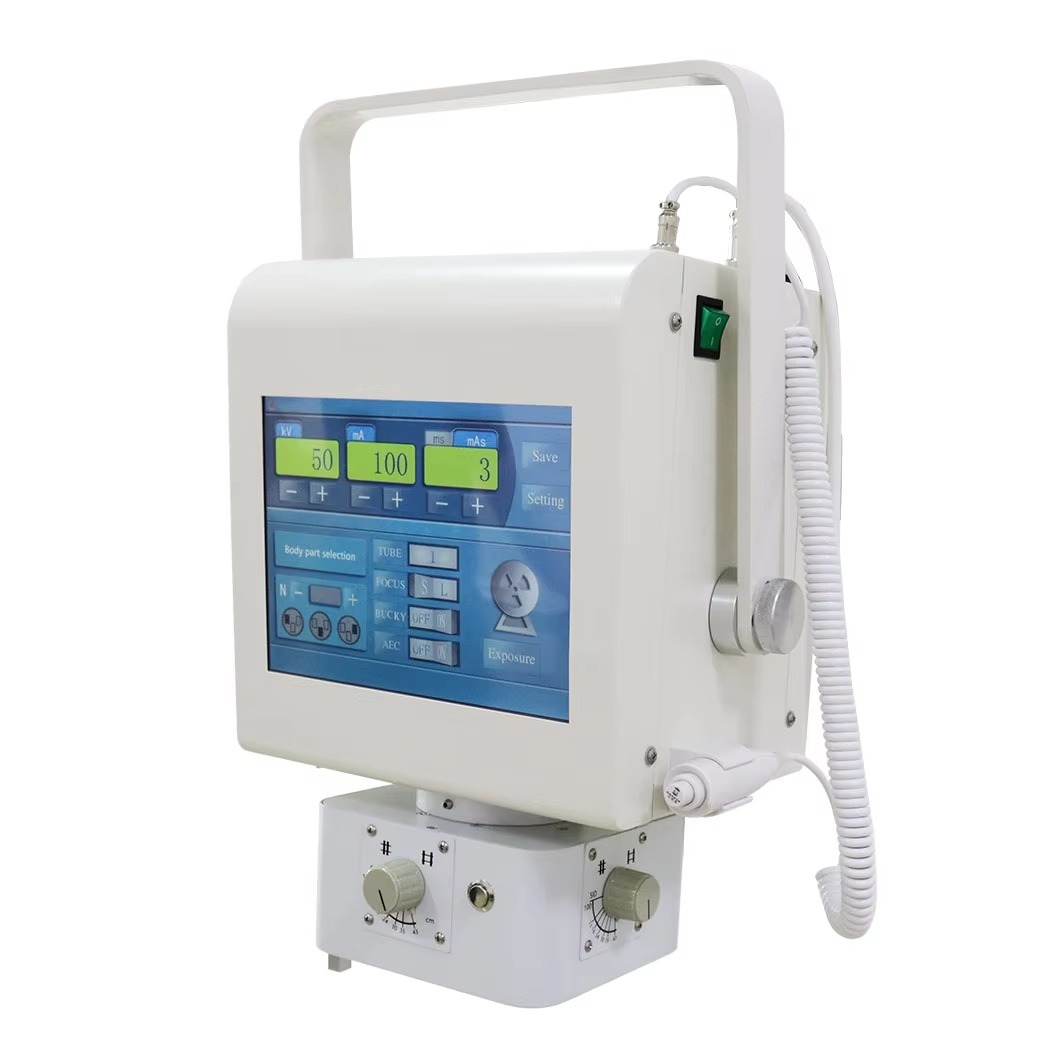

Main Unit |
Weight |
19 kg |
|
Dimension |
290×265×230 mm |
|
