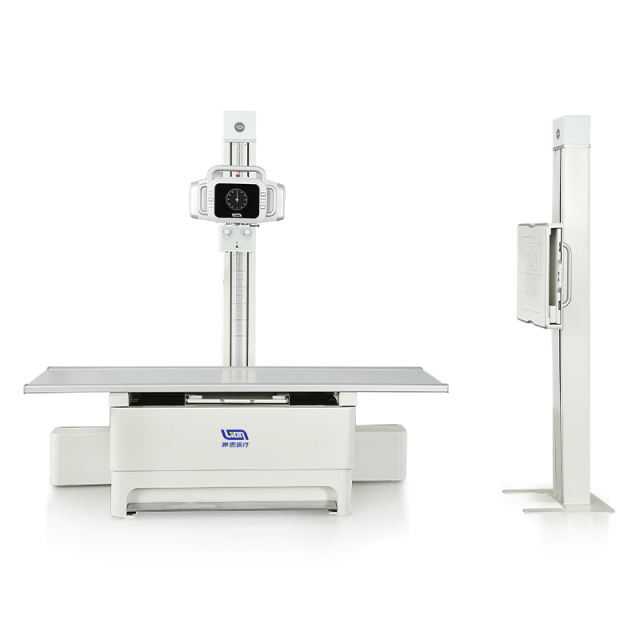

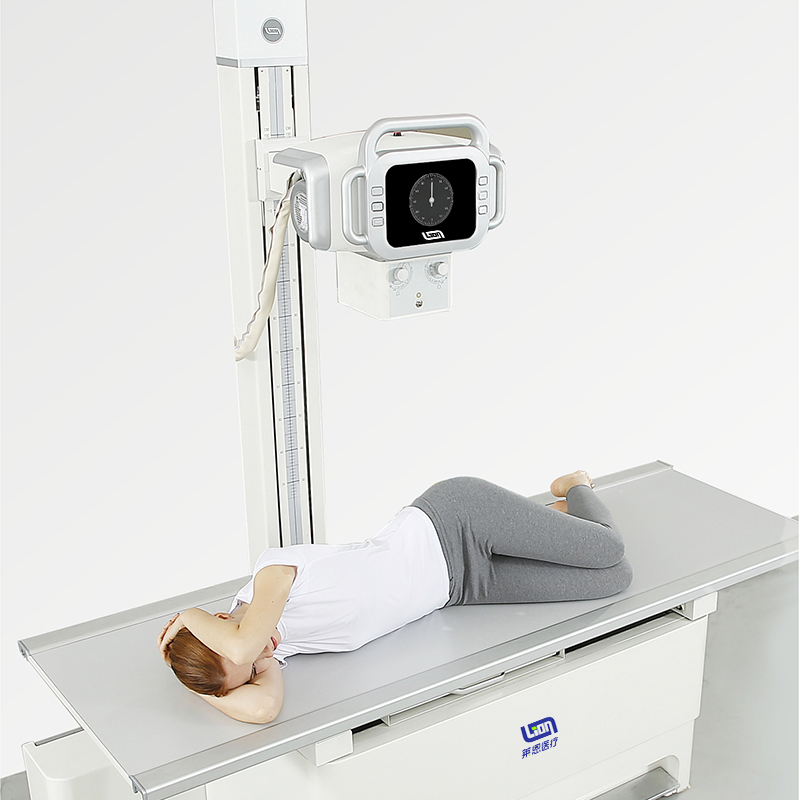

BX-50DR-L 50KW Radiography System 630mA Digital X-ray Machine

No.BX-50DR-L
Applicable to orthopedics, emergency room, operating room, etc.
$0.00
Flat Panel Detector:
1417 wired
1417 wireless
1717 wired
1717 wireless
kW:
32kW
40kW
50kW
65kW
80kW
  • BX-50DR-L 50KW Radiography System 630mA Digital X-ray Machine
  • BX-50DR-L 50KW Radiography System 630mA Digital X-ray Machine
  • BX-50DR-L 50KW Radiography System 630mA Digital X-ray Machine
  • BX-50DR-L 50KW Radiography System 630mA Digital X-ray Machine
  • BX-50DR-L 50KW Radiography System 630mA Digital X-ray Machine
  • BX-50DR-L 50KW Radiography System 630mA Digital X-ray Machine
  • BX-50DR-L 50KW Radiography System 630mA Digital X-ray Machine
  • BX-50DR-L 50KW Radiography System 630mA Digital X-ray Machine
  • BX-50DR-L 50KW Radiography System 630mA Digital X-ray Machine

Description

BX-50DR-L 50KW Radiography System 630mA Digital X-ray Machine
BX-50DR-L 50KW Radiography System 630mA Digital X-ray Machine
Technical Specifications
X-ray generator (include console)
Output Power 50KW
Power Voltage 380V±38V
kV range 40~150kV
mA range 10~630mA
mAs range 0.1 ~630mAs
Exposure time 0.001~10S

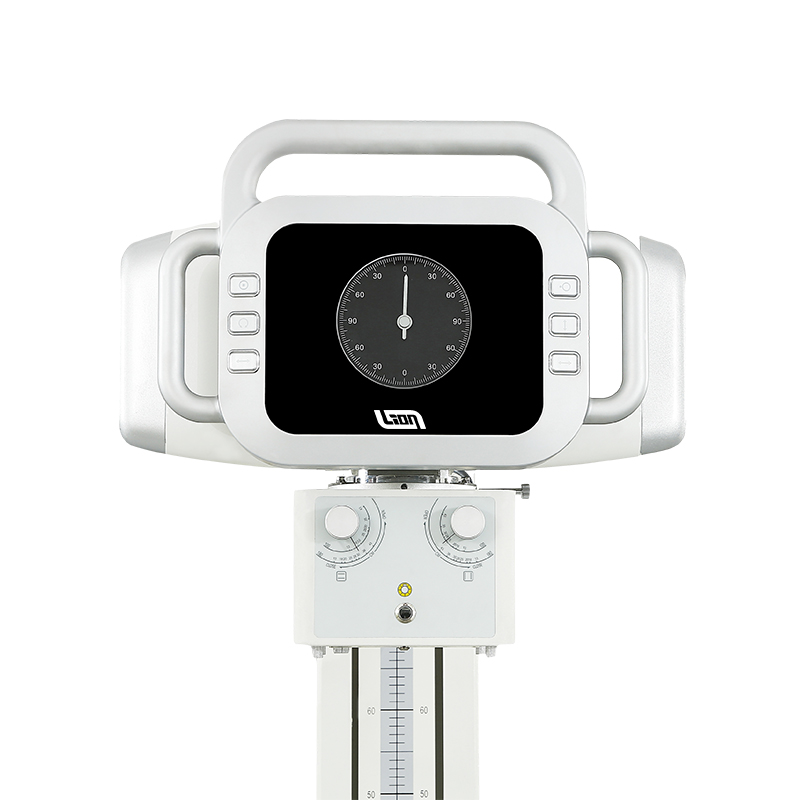

X-ray tube
Anode Heat Storage Capacity ≥300kHU
Small focus 0.6
Large focus 1.2
Anode speed 3000r/min
Collimator
Inherent filtration 1.0mm Al /75kV
Light Source LED

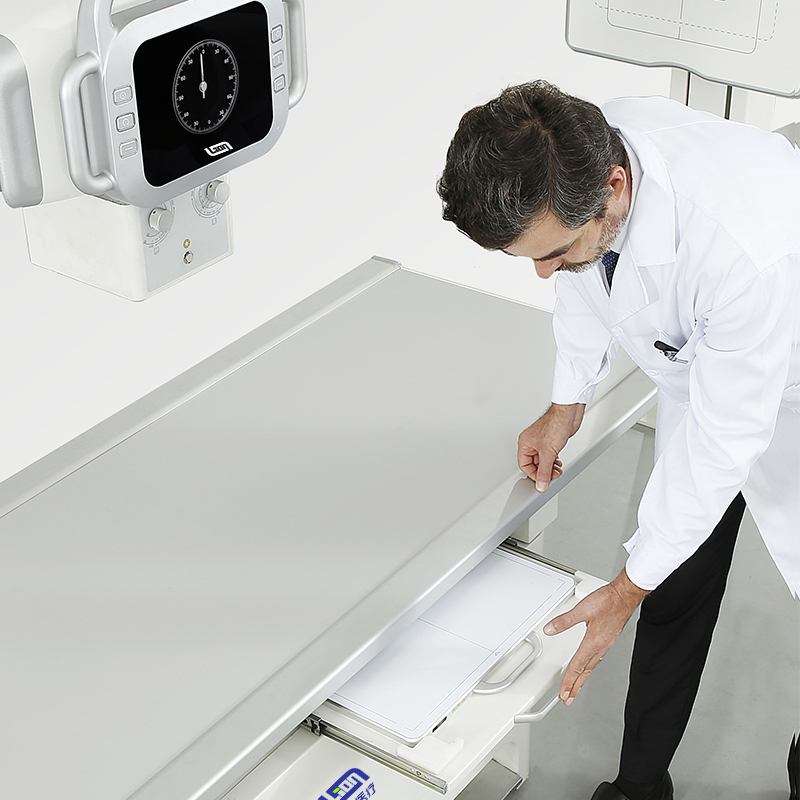

Radiographic Table
Top Table Size 2100X800X680mm
Bucky Size 18X18inch
Table longitudinal movement ≥900mm
Lateral hovering movement range 260mm±5%
Cassette Movement Distancet ≥500mm
Bed surface locking method Permanent magnet design, power-off
Bearing ≥150kg

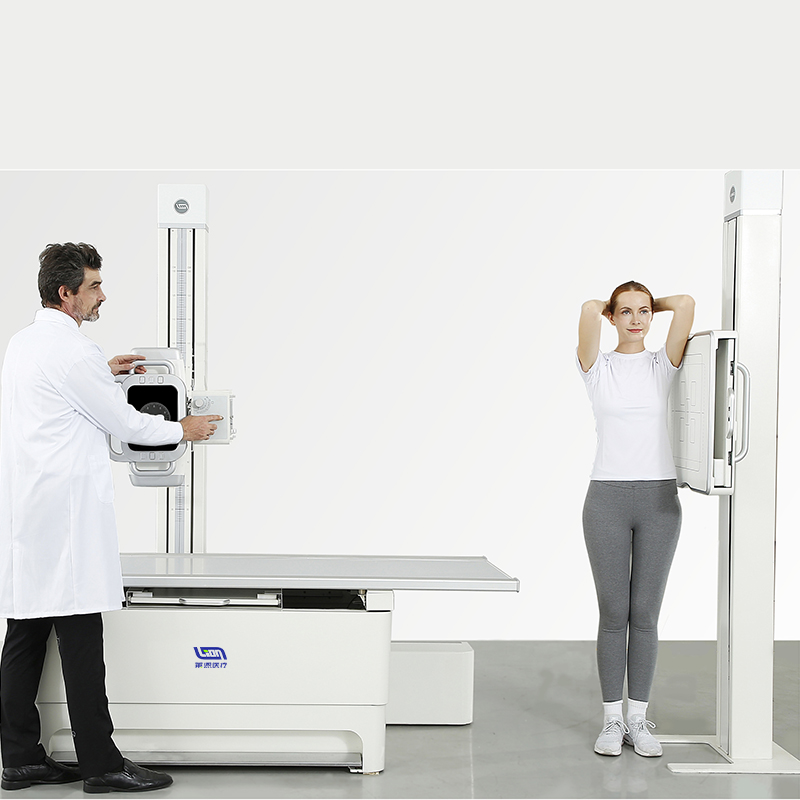

Vertical Chest stand
Vertical moving range ≥1000mm
Bucky Size 18X18inch
Flat panel detector rotation angle 0 °-90 °
Double Grid
Size 18X18inch
Ratio 1:01
F.D. 100cm
Density 40 L/cm

Application
Applicable to orthopedics, emergency room, operating room, etc.
Used for standing, lying and horizontal lateral positions such as head, cervical vertebrae, limbs, chest, abdomen, etc


Features
1. Rich DR upgrade reserve interface
2. Fault self-diagnosis and protection
3. Automatic calibration of tube current
4. X-ray tube has the function of filament dormancy
5. AEC function, different ionization chamber as optional
6. Analog - digital double - loop control, simple operation, high intelligence
7. High kV, high current, high power,strong penetration,able to handle obese patients
BX-50DR-L 50KW Radiography System 630mA Digital X-ray Machine

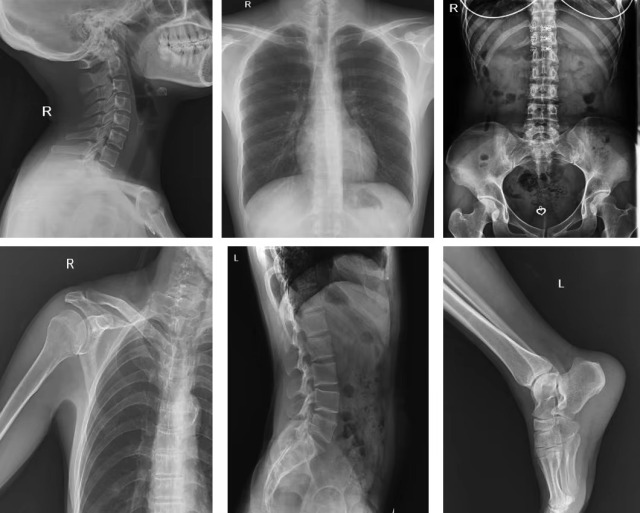

Clinical Images
BX-50DR-L 50KW Radiography System 630mA Digital X-ray Machine

Workshop
BX-50DR-L 50KW Radiography System 630mA Digital X-ray Machine

BX-50DR-L 50KW Radiography System 630mA Digital X-ray MachineBX-50DR-L 50KW Radiography System 630mA Digital X-ray MachineBX-50DR-L 50KW Radiography System 630mA Digital X-ray MachineBX-50DR-L 50KW Radiography System 630mA Digital X-ray MachineBX-50DR-L 50KW Radiography System 630mA Digital X-ray MachineBX-50DR-L 50KW Radiography System 630mA Digital X-ray Machine
FAQ
1. What about the price level? We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.

2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.

3. What is time of delivery? Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.

4. What about quality assurance? We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.

5. What is payment terms? T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
