Feature
Windows operation interface, figure button, mouse operation, touch screen.
96-well plate, multiple tests in the single plate.
Arrangement of Test item in micro-plate can be store and re-use
Parameter can be modified and stored
Plate shaking, speed and time adjustable
Open system, test item and parameters can be added or modified.
Large storage for 1000 test item and 1,000,000 results
10.4 inch color touch LCD
Printing comprehensive report, include hospital and patient information and test results
Built-in portable computer, easy to use.
Specifications
Microplate types: 96-well plate(U,V,or plat-bottom)
Wavelength: 405nm, 450nm, 492nm, 630nm, wavelength accuracy < 2nm
Reading range: 0.000-4.000 Abs
Measurement range: 0.000-3.000Abs
Light source: LED, >100,000 hours
Measuring system: 8-channel optical system
Test mode: End-point, kinetic, Multi-wave analysis
Resolution <1% or ±0.001Abs
Stability: <±0.005Abs/10min
Well Coincidence:≤0.015A
Linearity: r > 0.999
Repeatability: < 0.3%
Reading speed: 5s single wavelength , 10s double wavelength
QC: West guard Multi-rule, automated QC alert.
Self-Checking function: Self-checking and calibration function.
CPU: High-speed CPU
Printer: External jet printer, multi-form patient report.

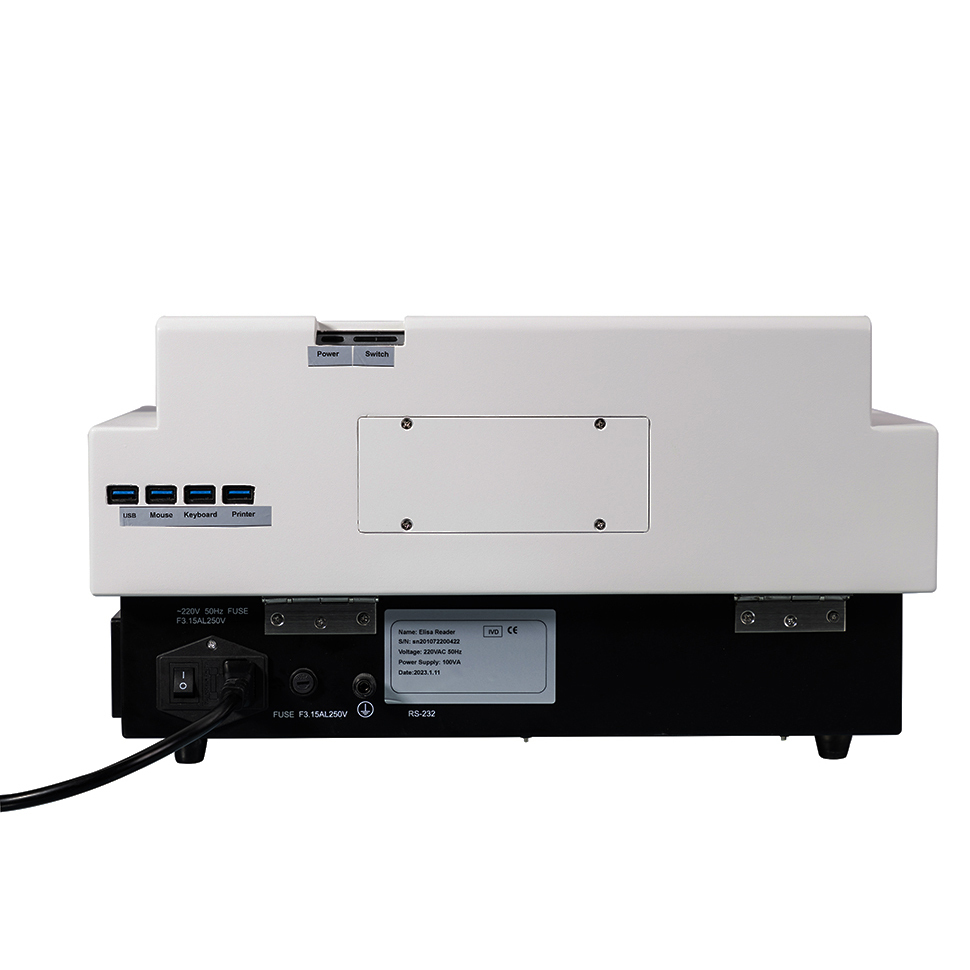

Interface: RS232 interface, USB.
Power supply: 220VAC 15% or 110VAC 15%50-60Hz 100W
Work environment: Temp 5℃- 40℃；Humi ≤85%;
Machine Dimension: 44CM*37CM*24CM
Weight: 13 KG
