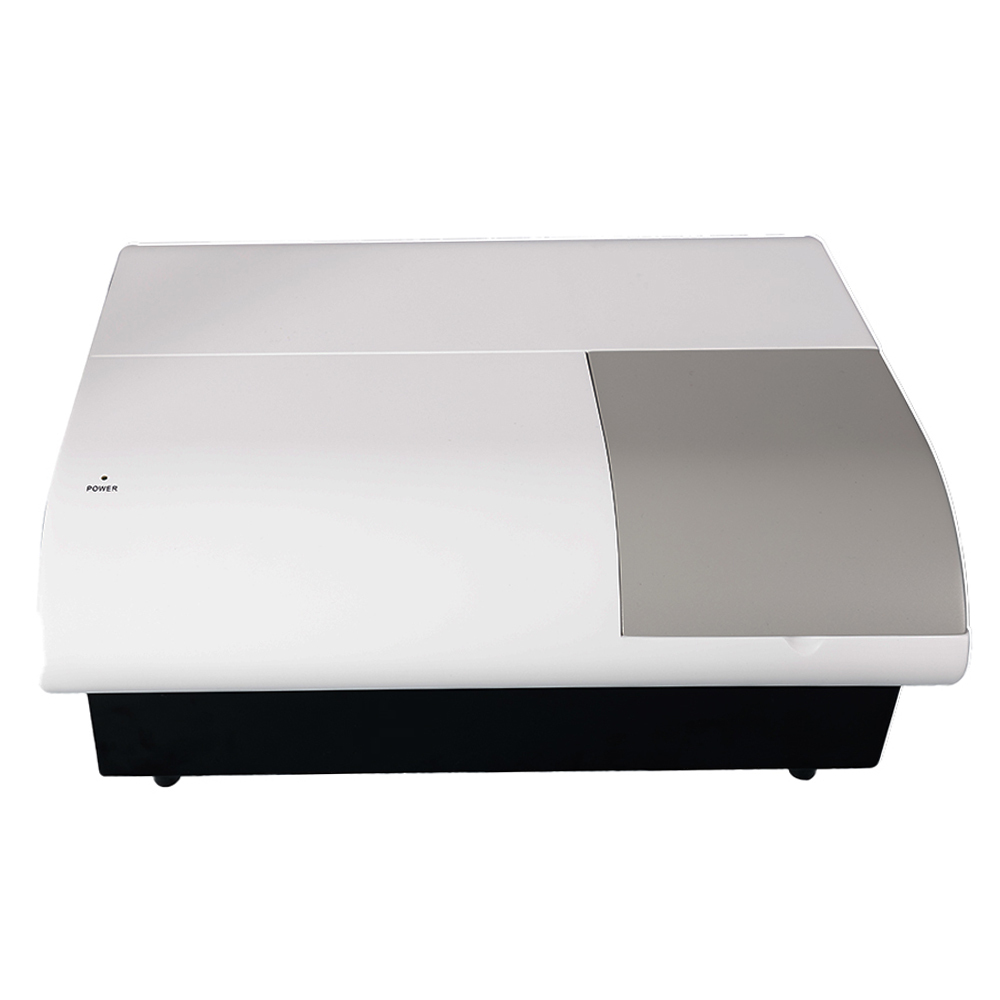

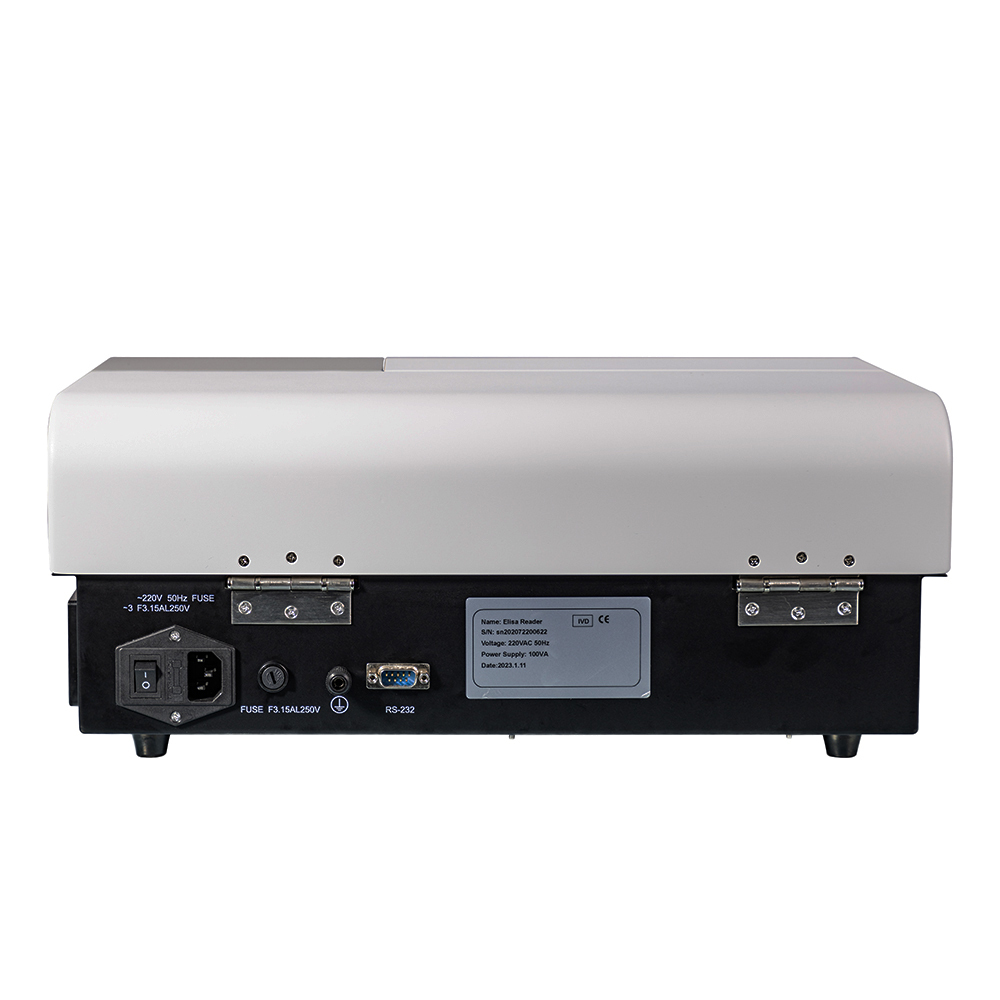

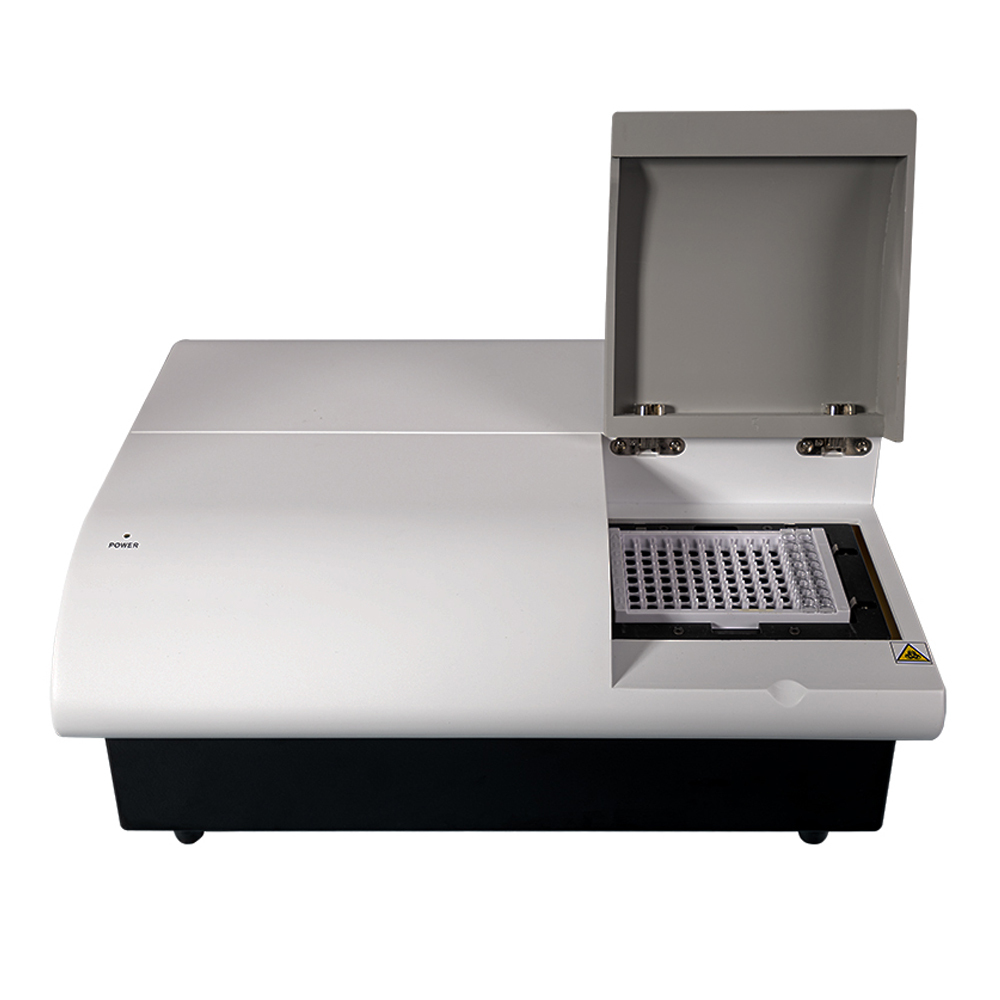

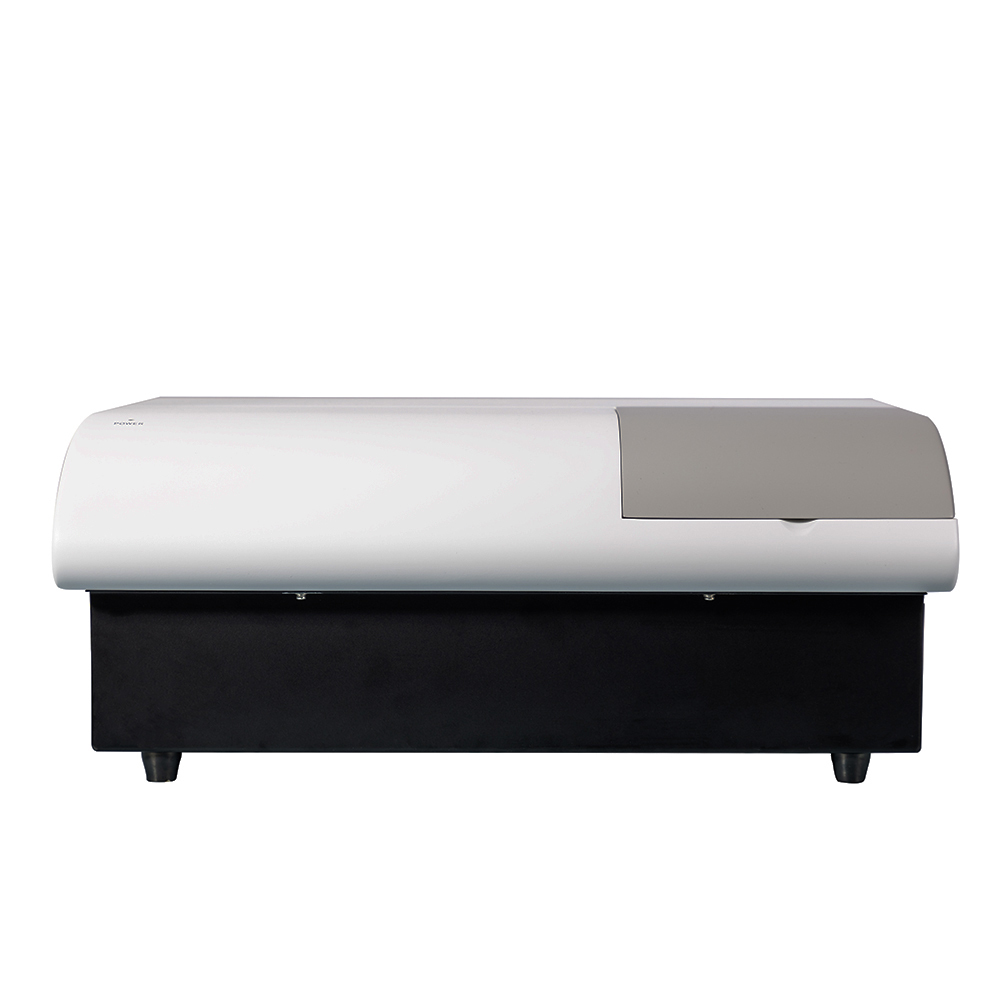

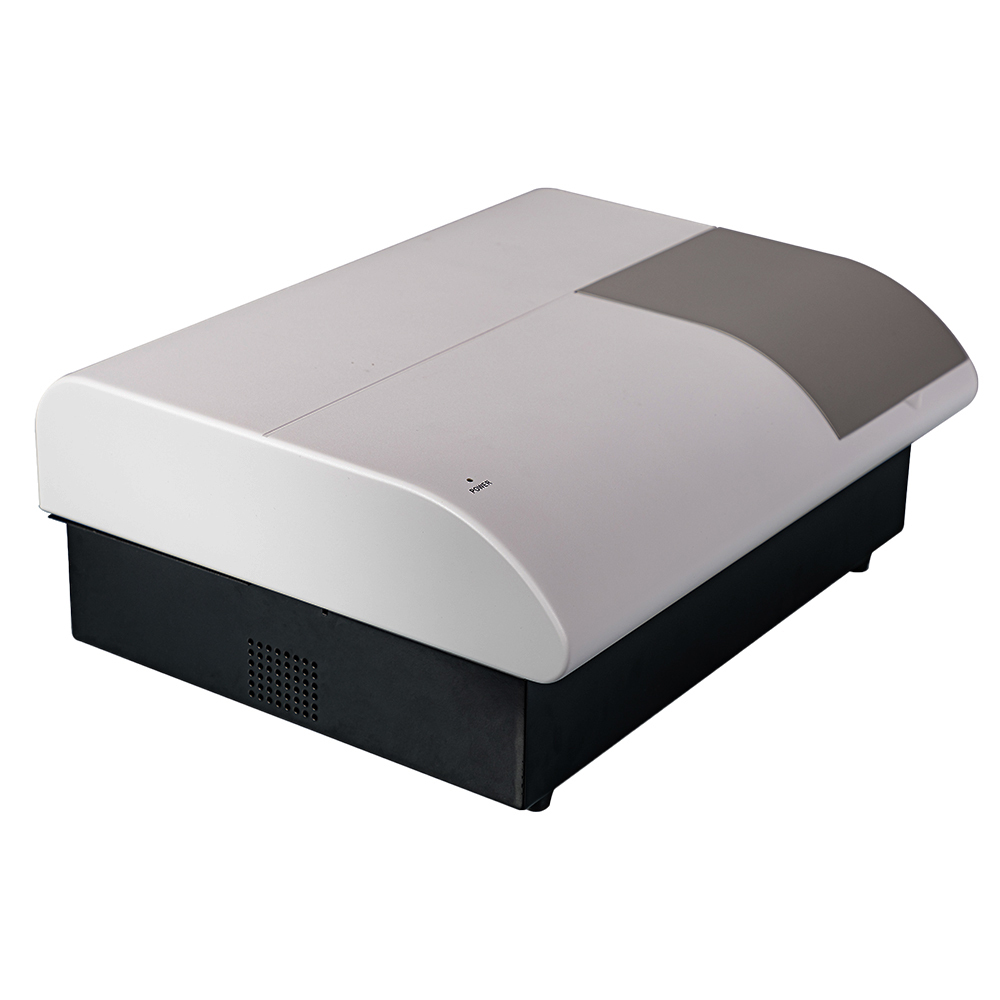

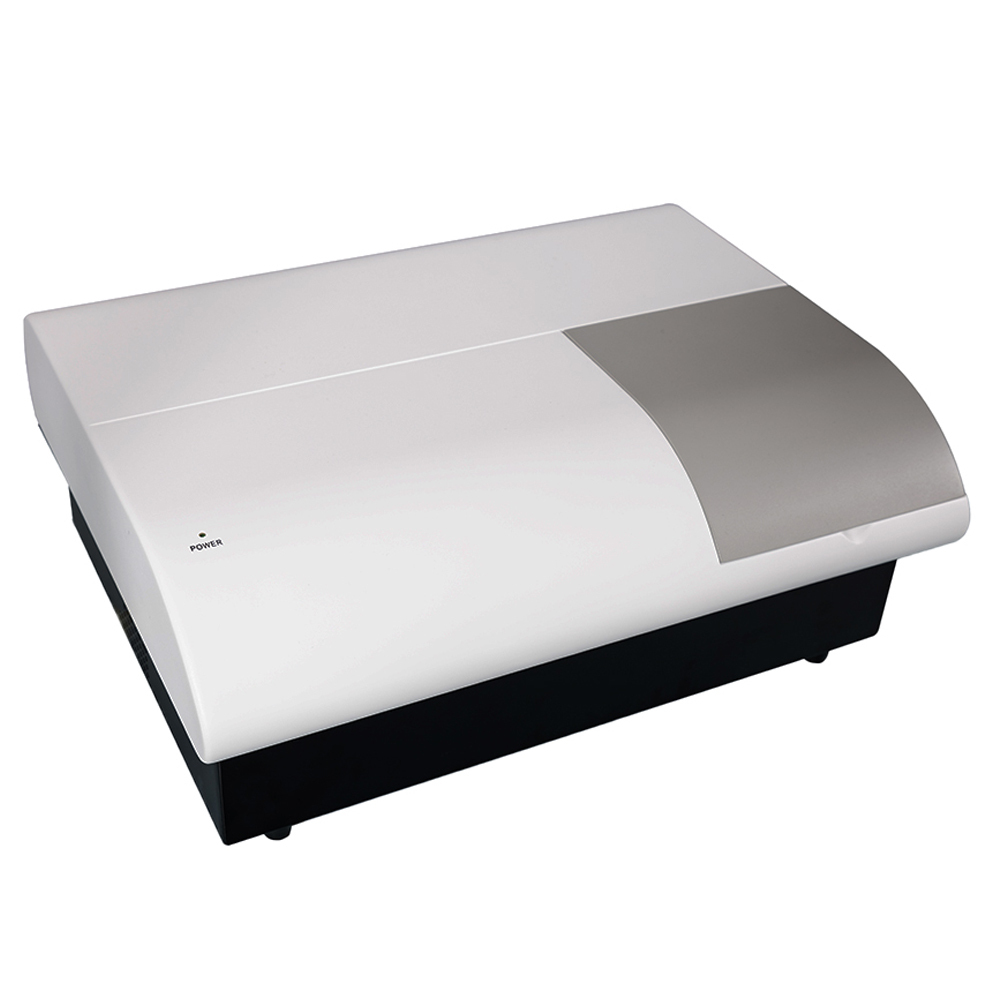

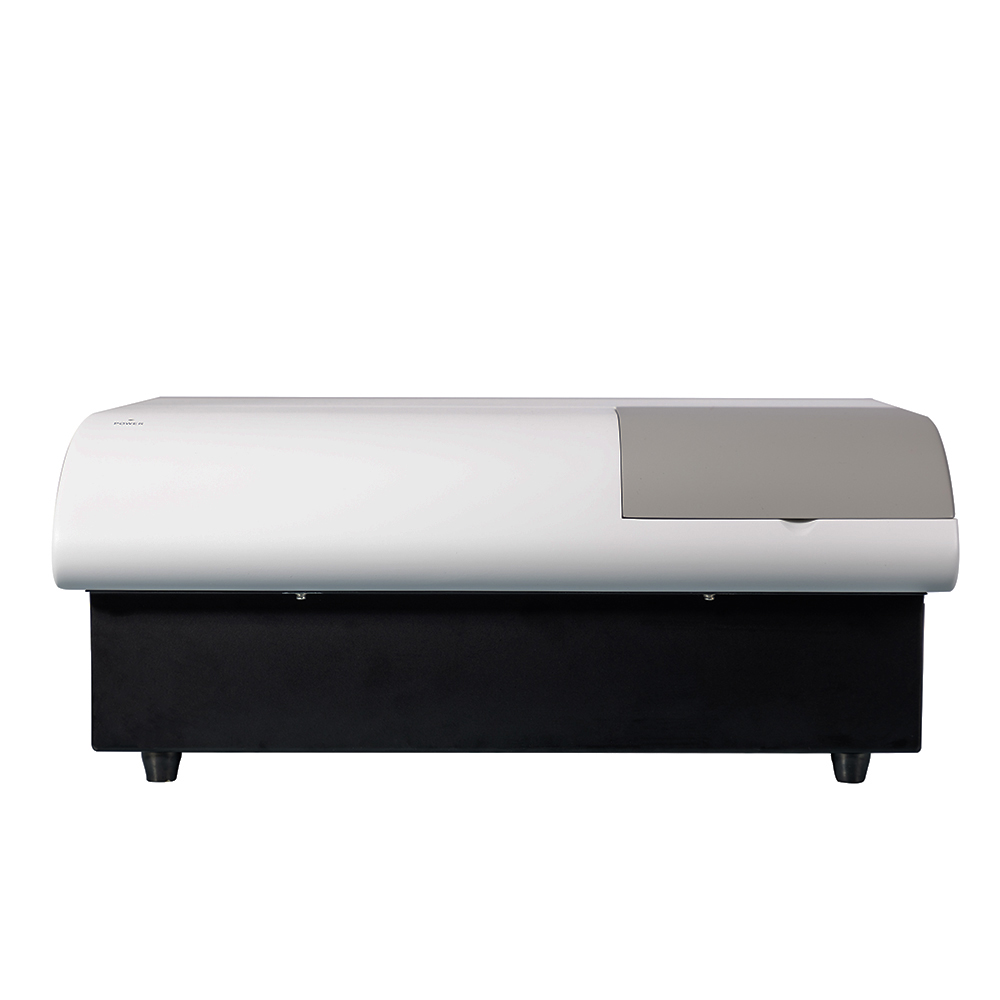

BX202 Elisha Reader Specification sheet

BX202 Elisha Reader Specification sheet

Feature

• Windows operation interface, figure button, mouse operation
• 96-well plate, multiple tests in the single plate
• Arrangement of Test item in Micro-plate can be store and re-use
• Plate shaking, speed and time adjustable
• Open system, test item and parameterscan be added or modified.
  • Large storage for 1000 test itemand 1,000,000 results
  • External large LCD color screen,
  • Printing comprehensivereport,include hosiptaland patient information and test results
  • Externalcomputer, easy to use.

Specification

Microplate types: 96-well plate(U,V,or plat-bottom)

Test mode : End-point, kinetic, Multi-wave analysis

Light source:Tungsten Halogen,12V/20W,>2000 hours

Measuring system:8-channel optical system

Wavelength：405、450、492、630nm, 4 more filters optional.

Measurement range: 0-4.00Abs

Resolution : 0.001Abs（display），0.0001Abs(Inner counting )

Stability: <±0.005Abs/10min

Sensitivity≥0.01L /mg

Linearity: r > 0.999

Repeatability: < 0.3%

Reading speed : 5s single wavelength , 10s double wavelength

QC:Westguard Multi-rule,automated QC alert.

Self-Checking function : Self-checking and calibration function.

Printer: External jet printer, multi-form patient report.

CPU: High-speed CPU

Interface :RS232 interface,USB, PSTN and PC connection.

Power supply: 220VAC 15% or 110VAC 15%50-60Hz 100w

Work environment: Temp 5℃—40℃；Humi ≤85%

Size : 43CM*34CM*16CM

Weight : 9KG
