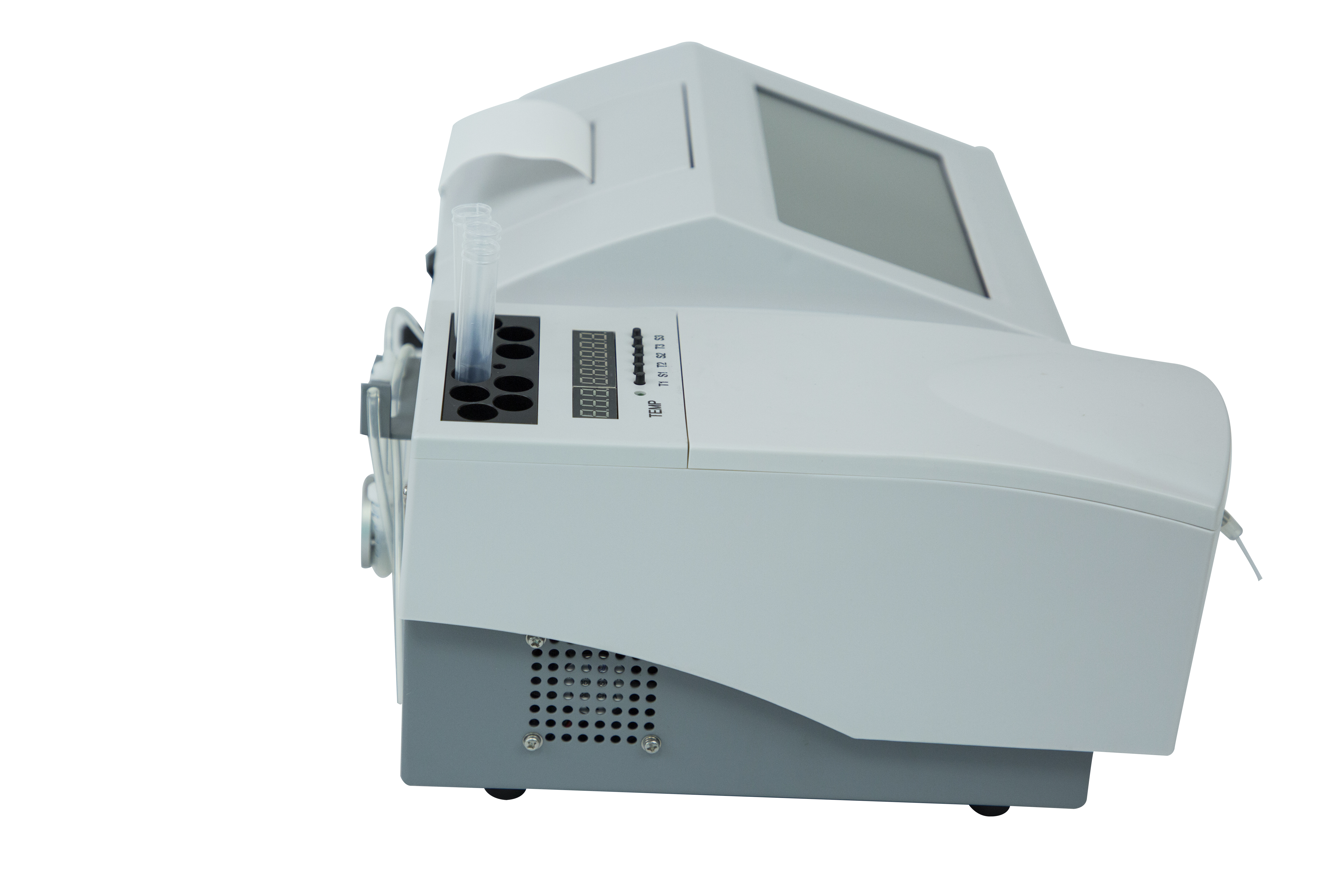

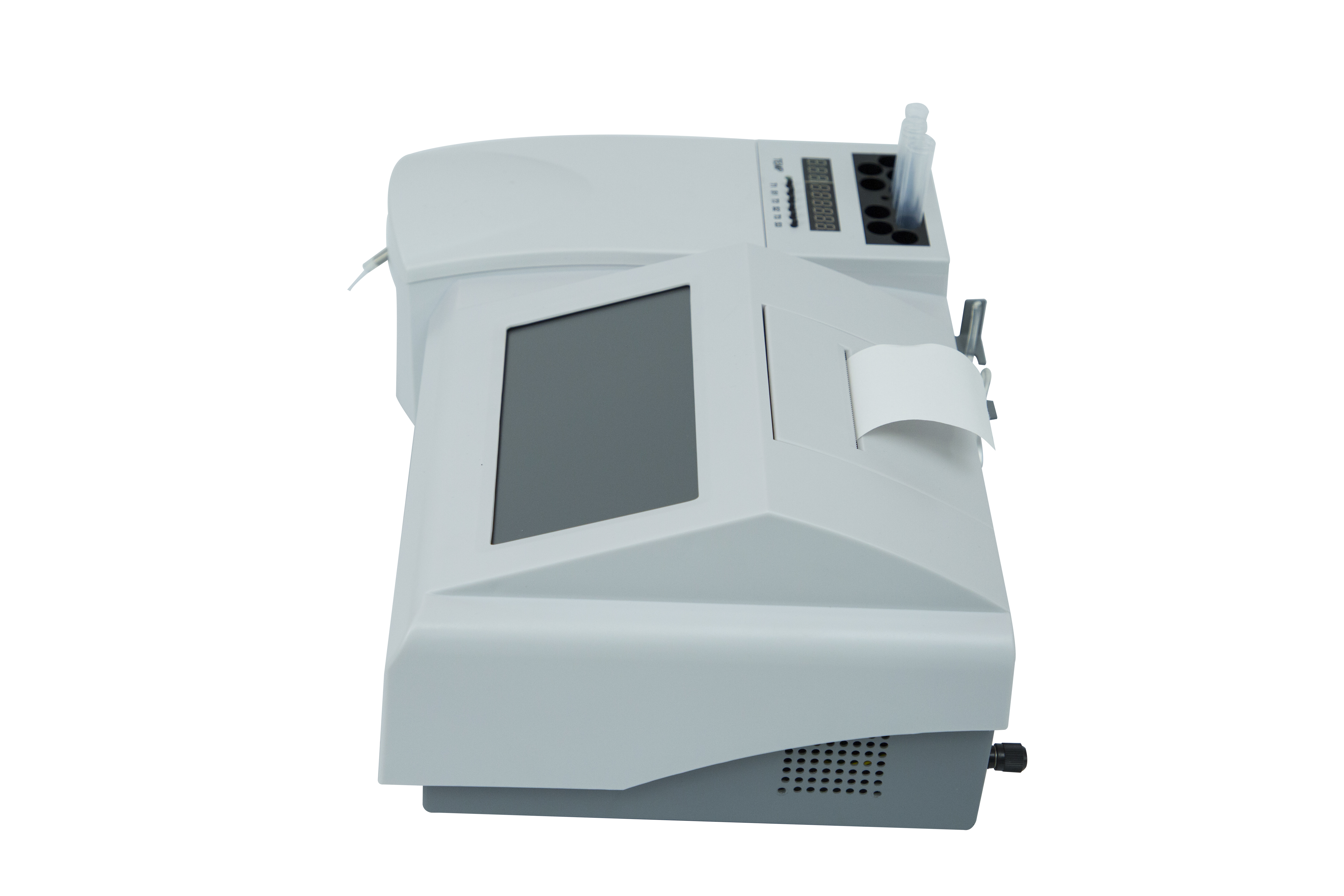

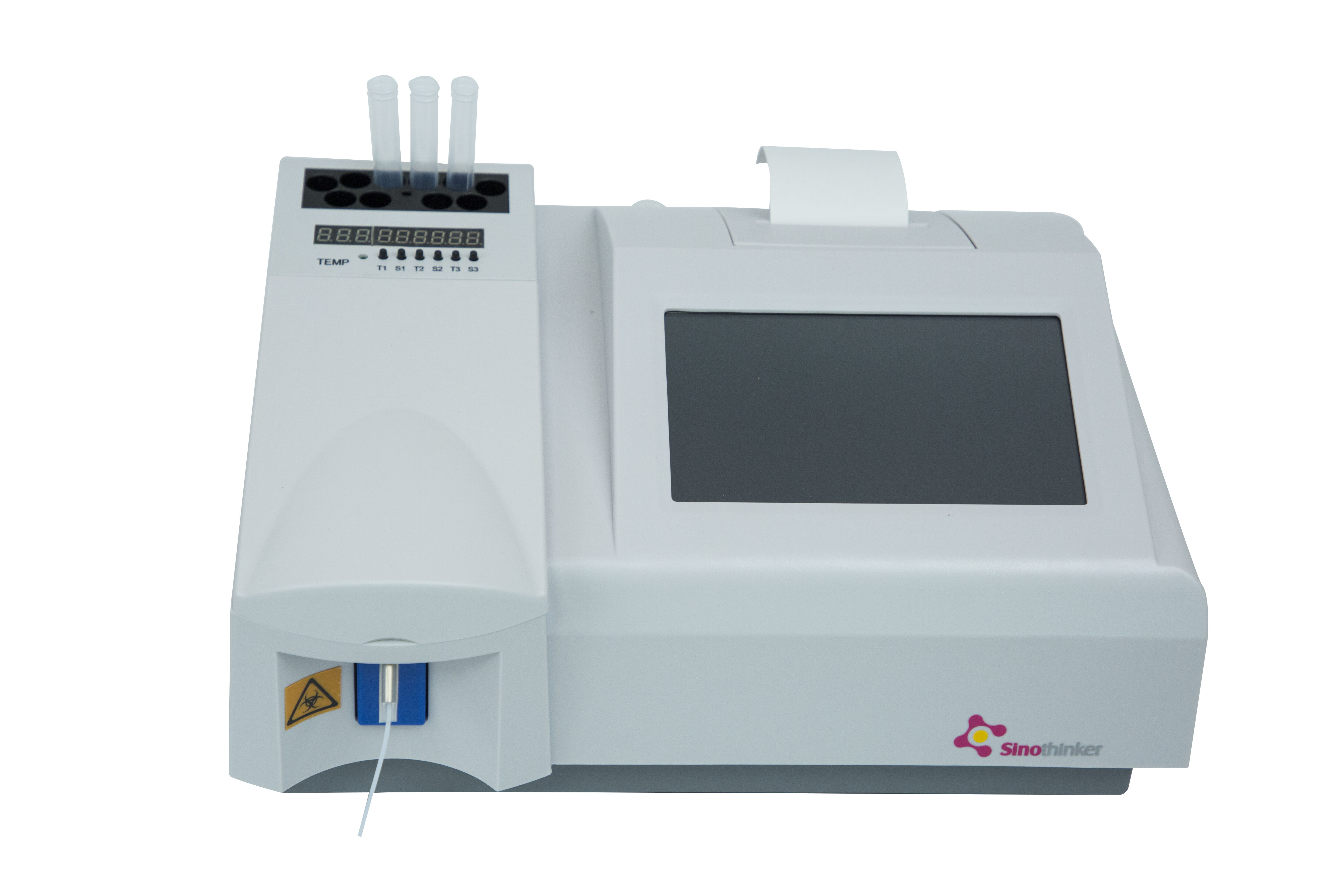

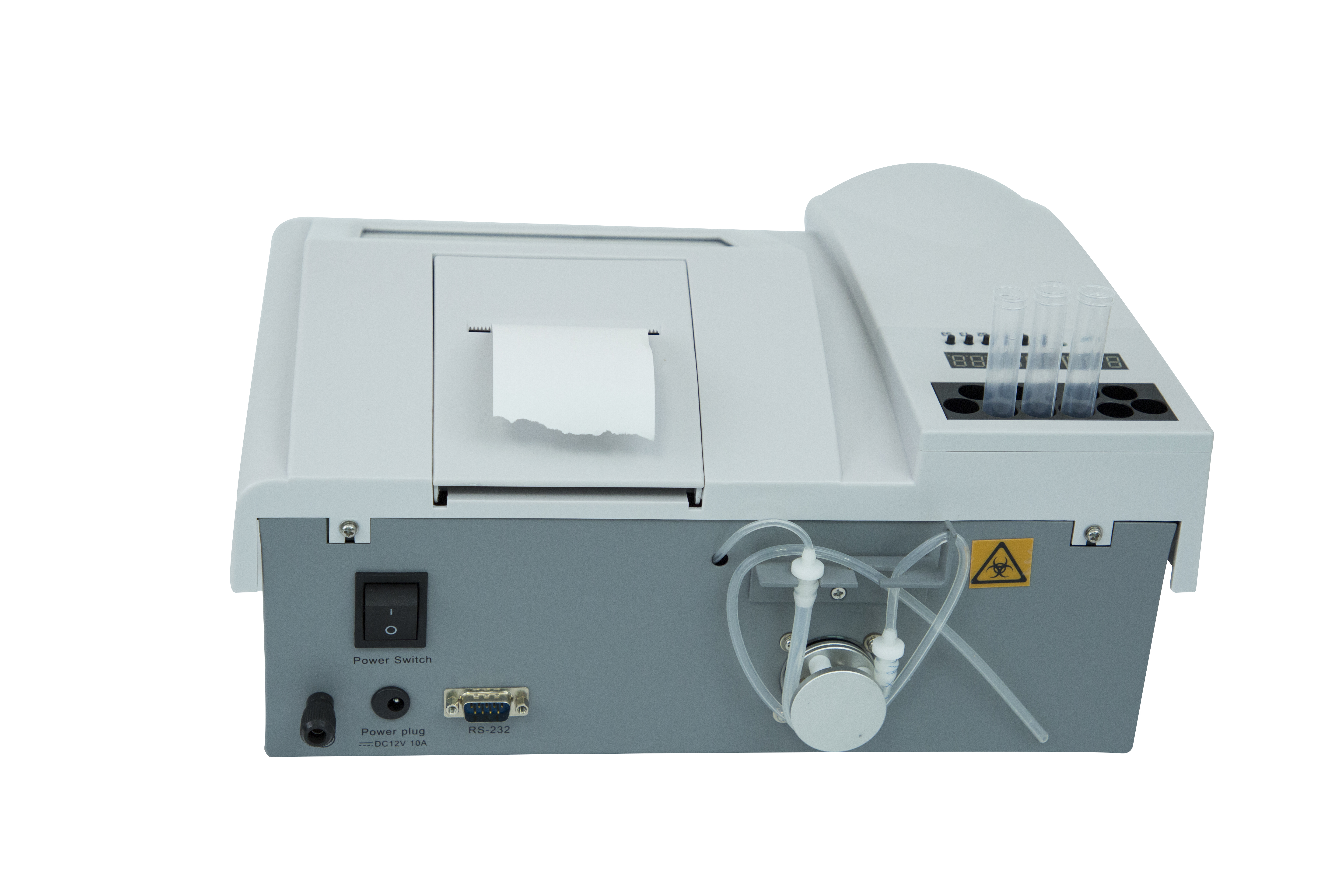

BX3002B1 Semi-automatic chemistry analyzer

Specification sheet

Feature

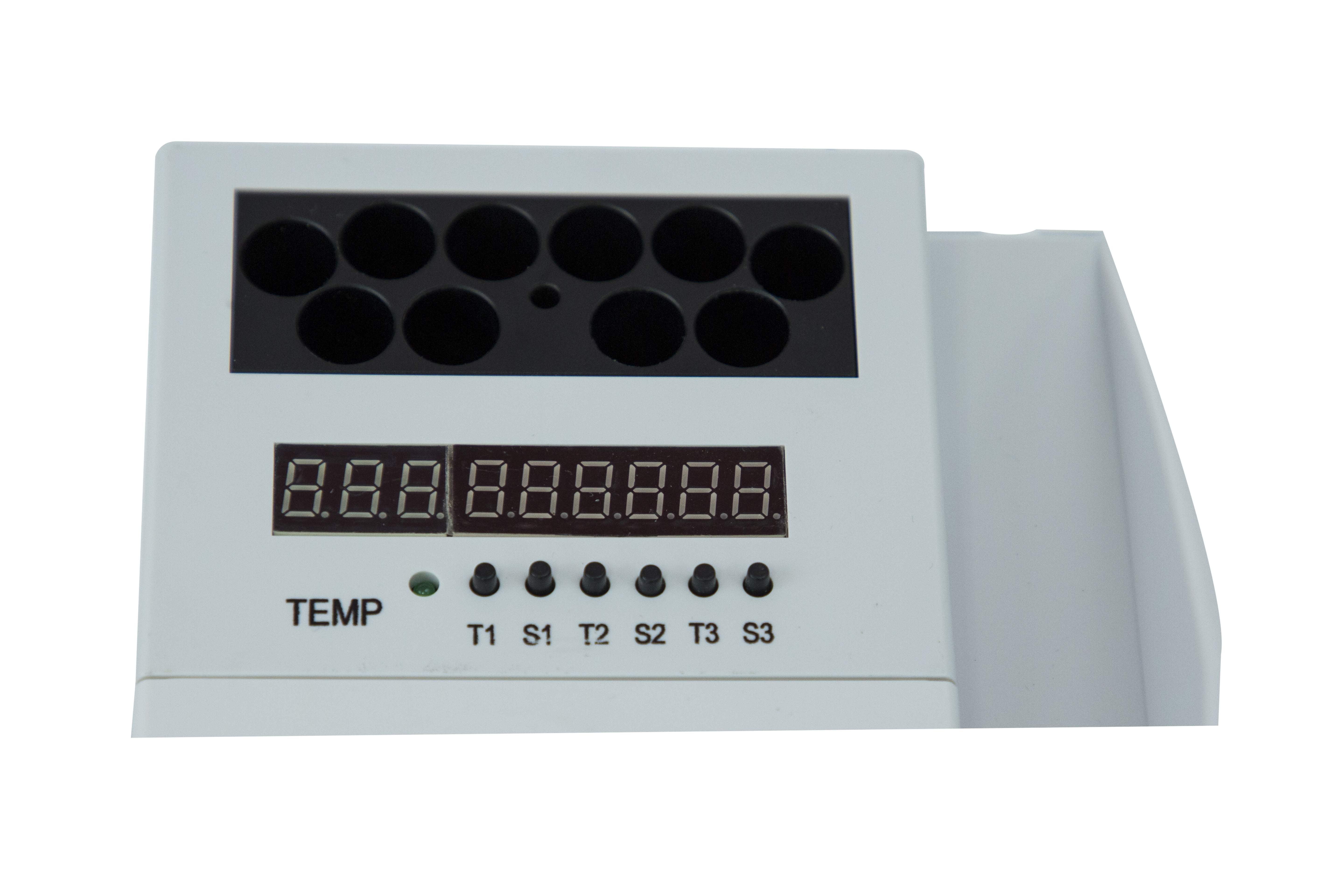

10 incubators and three timers
7 inch Color LCD , Touch screen
Flow cell and Cuvette test mode compatible
Real time curve showing
7 wavelength , 90 test item pre-programmed
Memory for 10,000 sample results
Light source hibernate function making lamp life longer
RS232 interface, PC connecting


Specification

Test mode: Kinetic, End-point, Fixed-time, Turbidimetry , Absorbance
Wavelength: 7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position
Wavelength precision: ±2 nm, width ≤ 10nm
Absorbance range: 0~4.500 Abs
Absorbance Resolution: outside 0.0001 Abs , inside 0.00001 Abs
Carry over: < 1%
Repeatability CV: < 1%
Incubator: 37℃、30℃、25℃、Precision : ±0.1℃
Sample volume: 0~3000 uL (≥500uL recommend)
Data Storage: ≥10000
Quality control curve:  、SD、CV%、L-J quality control curve for every test item
Flow cell: 32 uL quartz glass, 10 mm
Lamp: Philips 6V 10W Halogen Lamp with long life
Screen: 7 inch color LCD
CPU: ARM series high speed micro CPU
Printer: Internal thermal sensitive printer
Interface: RS-232
Work Environment: Temperature 0℃ ~ 40℃, Humidity: ≤80%
Power supply: 100~240VAC，50-60Hz，100VA
Dimension: 340(L)*270(W)*160(H)
Weight: 5 kg


Usual test list

Liver function:
ALT  AST  ALP  T-BIL  D-BIL  TP  ALB  TTT  CHE  Nh3
Renal function :
BUN  CRE  UA  URE  CO2-CP  γ-GT
Lipids:
T-CHO  TG  HDL-C  LDL-C
Cardiac function:
CK  CK-MB  LDH
Immune proteins:
IGA  IGG  IGM  C3
Others:
GLU  HGB  AMS
