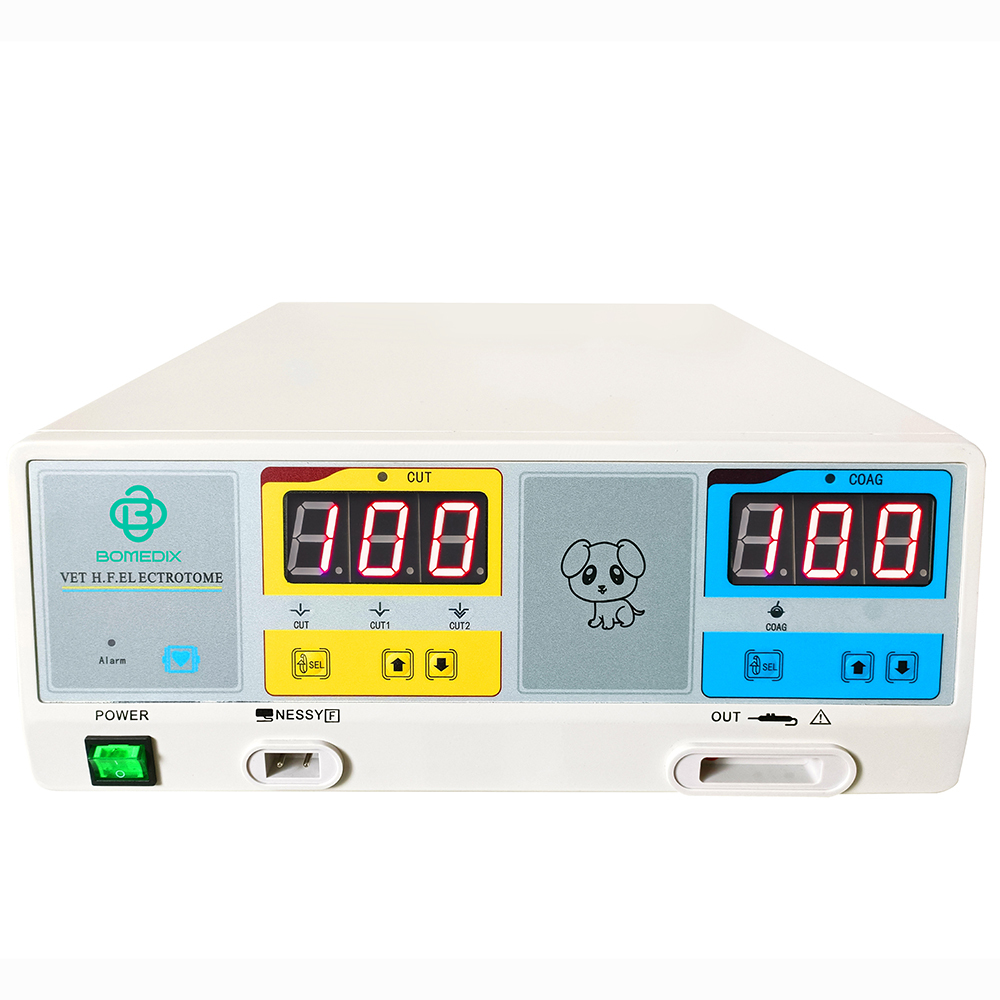

VET ELECTROSURGERY UNIT

VET-017 Technical Parameters

• Four Working Modes:

• Scope of Application：

It is suitable for various surgeries on cutting or coagulation for animals.

• Functional Features：

1.Cutting: that is pure cutting, the effect is fine cutting, tissue surface is fresh and no scab;
2.Blend 1: The effect is to provide powerful coagulation while cutting.
3.Blend 2: The effect is to provide good coagulation while cutting. It is suitable for superficial coagulation of tissue in surgery and can be used with endoscopy.
4.Coag 1: It can be called soft electrocoagulation or point coagulation. It is suitable for deeper coagulation of tissue in surgery and can be used with endoscopy. Because smaller area of action can reduce adhesion between electrode and tissue, it is better for rehabilitation of animals.

• Product Advantages:

1.Independent output port of endoscope and intelligent conversion key, which can enter endoscopic mode automatically after start-up.
2.Microcomputer control system, power-off protection, and memory function of keeping last usage data after restart.
3.Automatic adjustment on output power. It can be adjusted automatically according to the change of density of tissue. Stable output power to keep the minimum wastage.
4.Automatic conversion on monopolar.
5.Automatic monitoring of on-off, automatic detection and error prompt in work.
6.The monitoring circuit system on contact quality of neutral electrode can test and evaluate the safety and effectiveness on the contact area between electrode plate and skin. The system can cut off output automatically and give an alarm, in case of finding that contact area is in dangerous level. It can test and use negative plate of monopolar effectively.
7.Operating panel with keys, high definition and large digital. It has different sound and light indicators during operation. Waterproof operating keys easy to clean and maintain.
8.Independent three-way power output. This increases the convenience and security of operation.
9.It can be operated and performed well underwater even when dissecting and removal of fat tissue.
10.Fully suspended power output. There are two independent and isolated application sections to prevent defibrillation interference (monopolar).

• Technical Parameters:

• Transport and Storage:
• Ambient temperature range:-40ºC～55ºC;
• Relative humidity range: ≤93%;
• Atmospheric pressure range: 500hpa～1060hpa;
